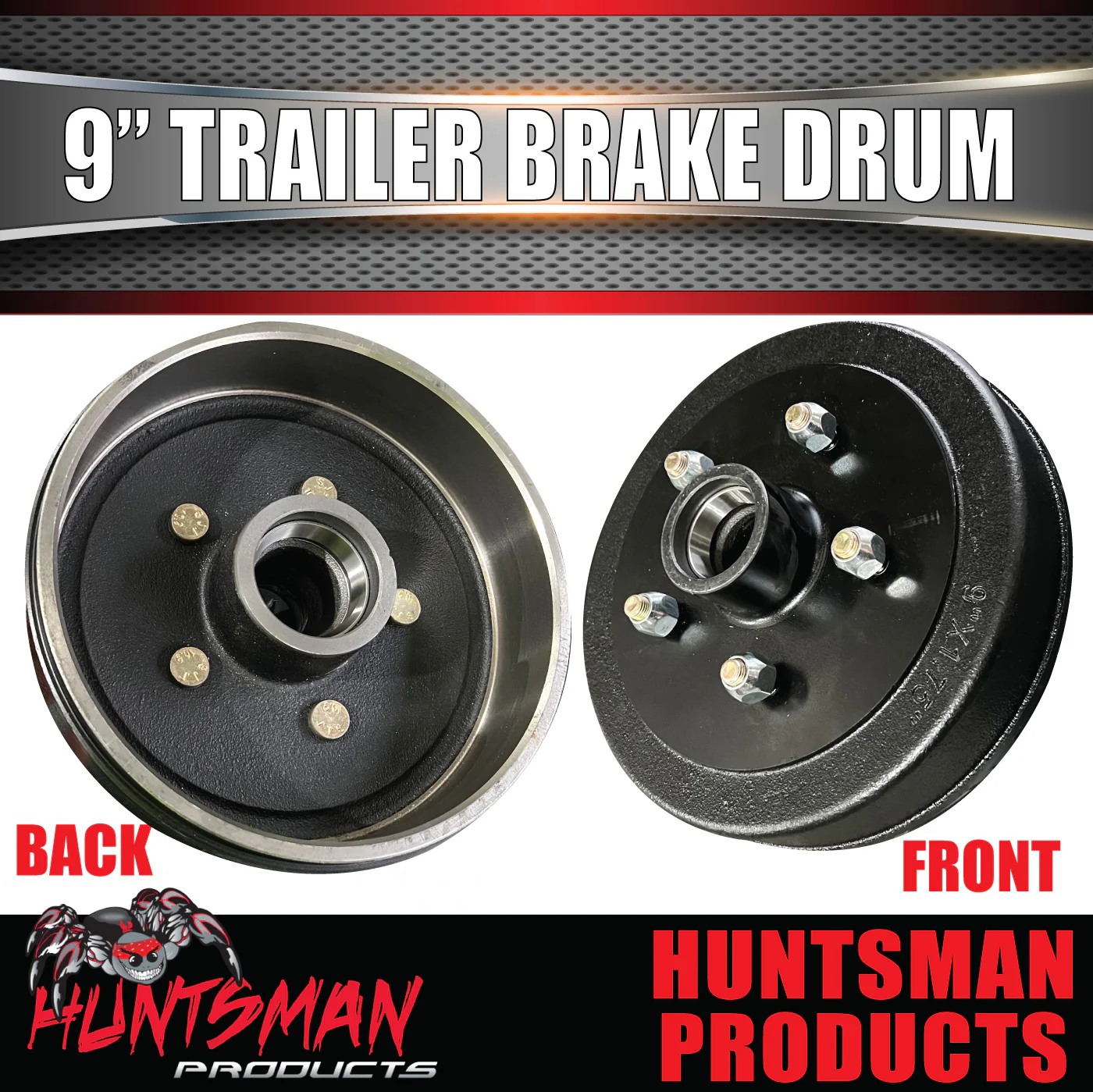

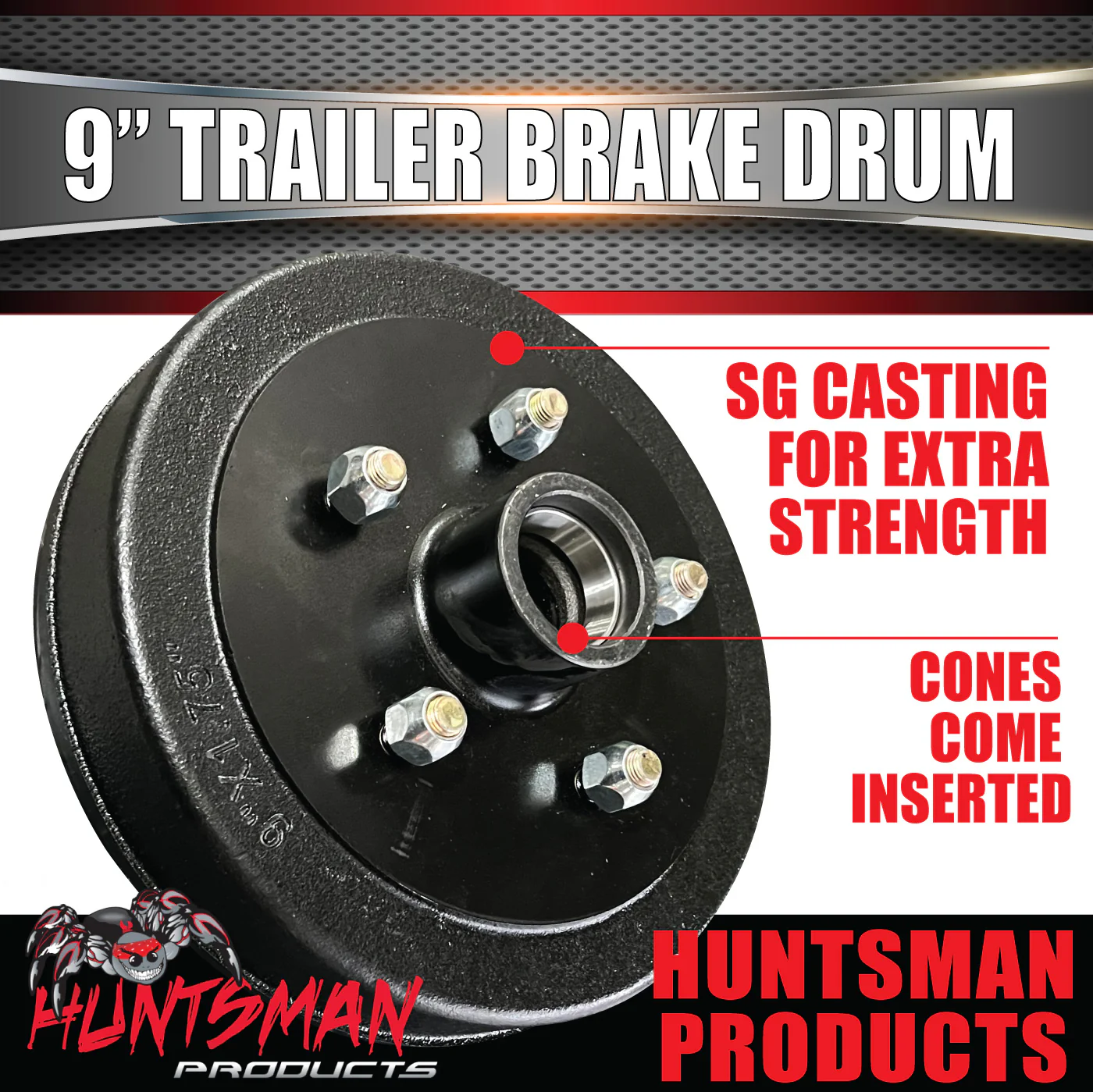

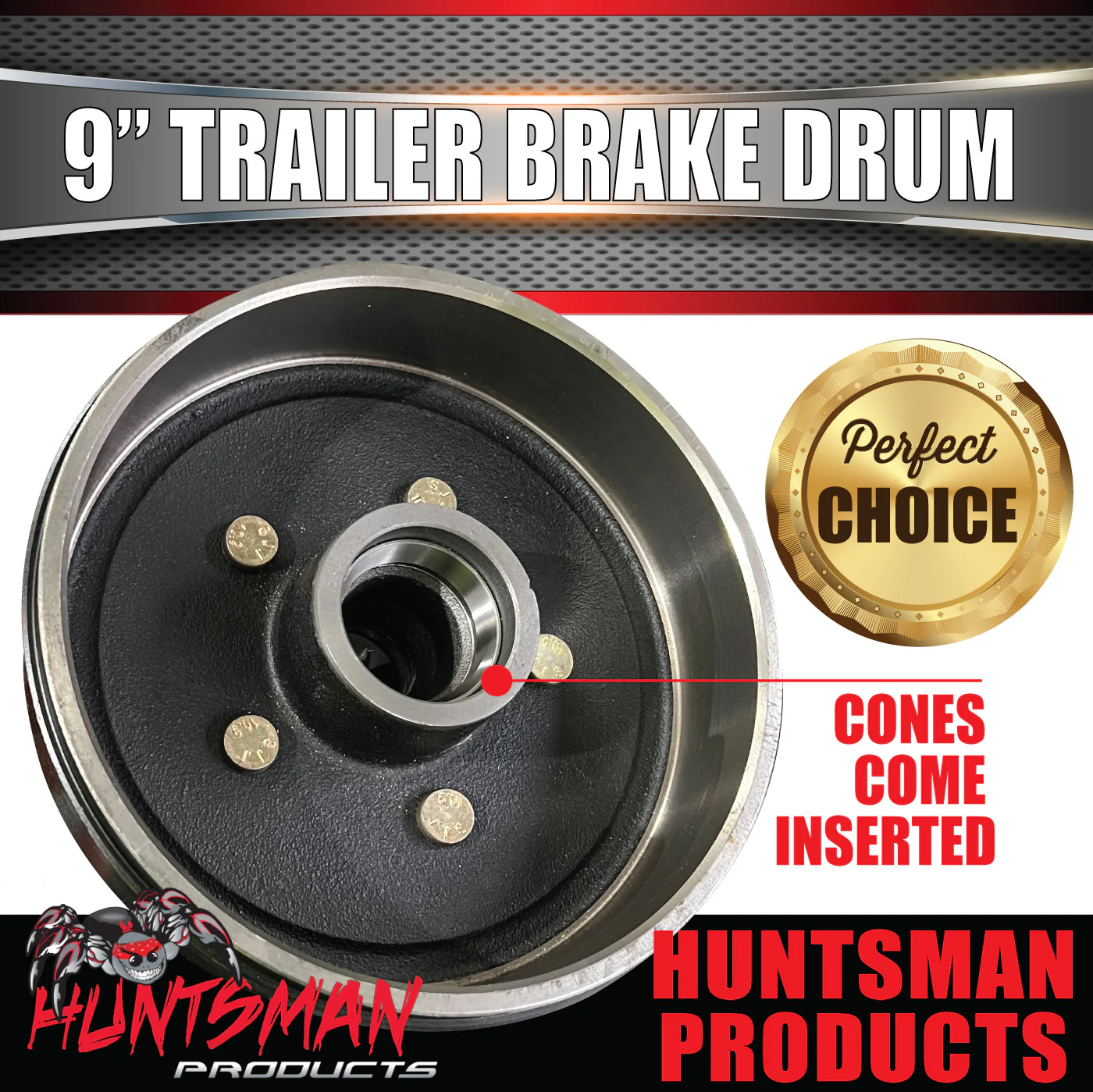

1x Mechanical Hydraulic Trailer Brake Drum 9" Ford Pattern + SL / Ford Size Bearings

1X 9" 5 STUD HYDRAULIC / MECHANICAL BRAKE DRUM SUIT FORD PATTERN
& SL SLIMLINE (FORD) SIZE BEARING KIT
(SG casting. much stronger than grey iron casting)

1x 9" 5 STUD FORD PATTERN STEEL DRUM WITH STUDS AND NUTS

PCD: 5/114.3

1/2" STUDS AND NUTS

MATERIAL: S.G CASTING

FINISH: BLACK PAINTED

67.18MM FROM CENTRE OF ONE STUD TO THE CENTRE OF THE NEXT STUD

SUITS AXLES: 45MM AND SOME 50MM AXLES

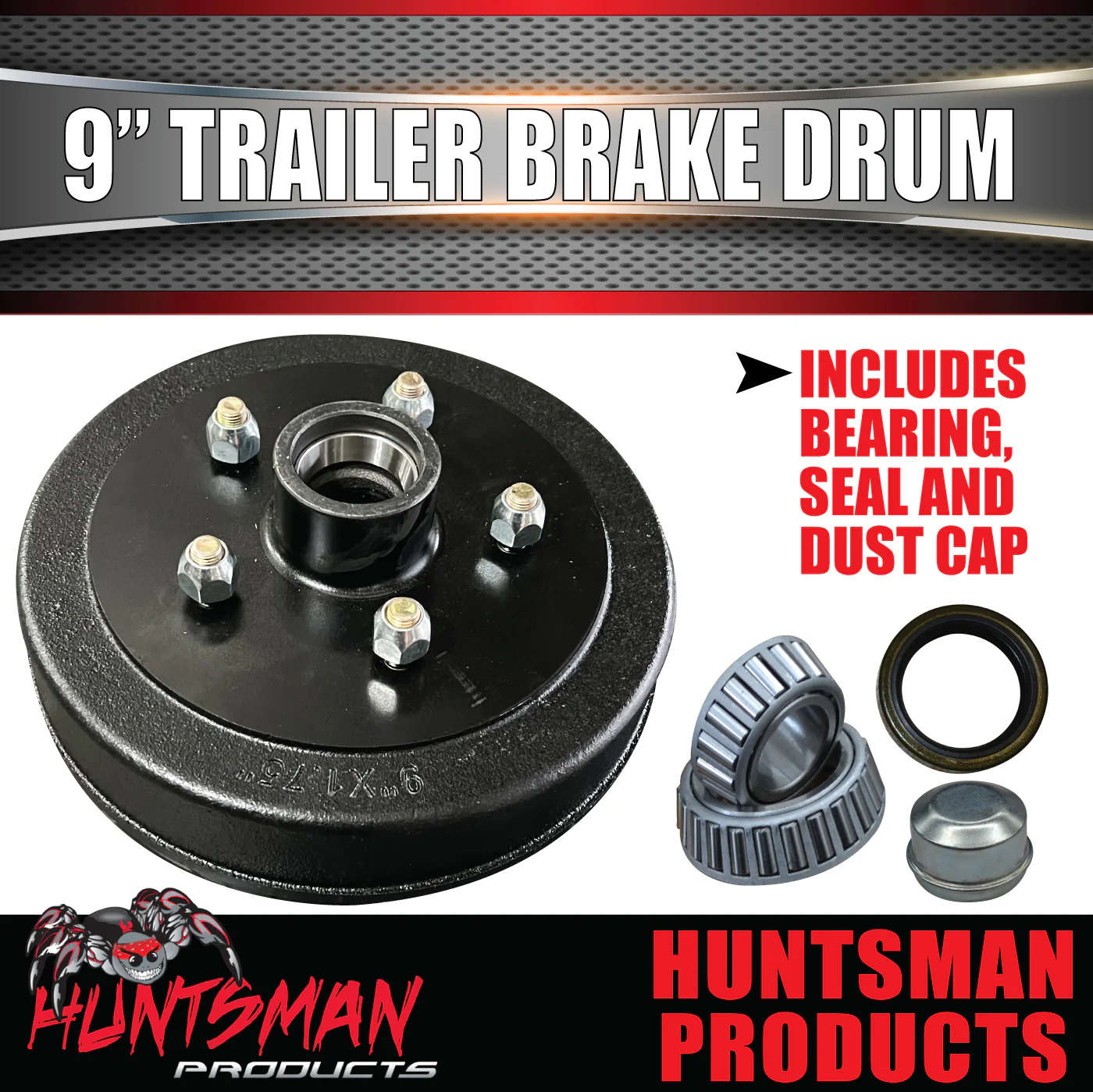

1X SLIMLINE BEARING SET

1X INNER BEARING ID:34.9MM (L68149)

1X OUTER BEARING ID:22MM (L12749)

1X OUTER BEARING CUP (already inserted)

1X INNER BEARING CUP (already inserted)

1X SLIMLINE REAR DUST SEAL

1X 45MM DUST CAP

HUBS COME WITH CUPS INSERTED



BEARING OPTIONS
UPGRADE TO JAPANESE BEARINGS $25 (click on link below)

CLICK HERE TO UPGRADE TO JAPANESE KOYO BEARINGS
