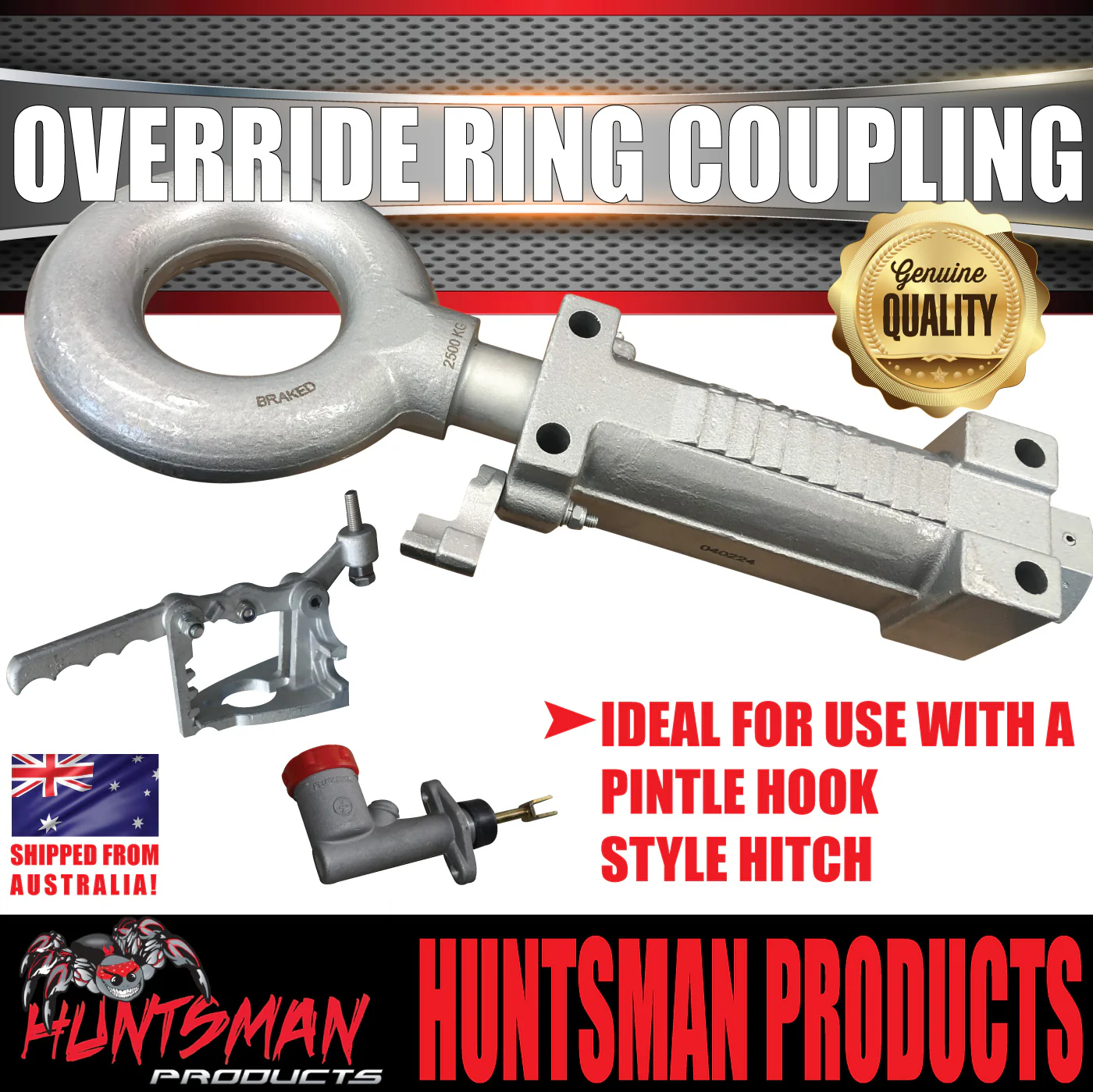

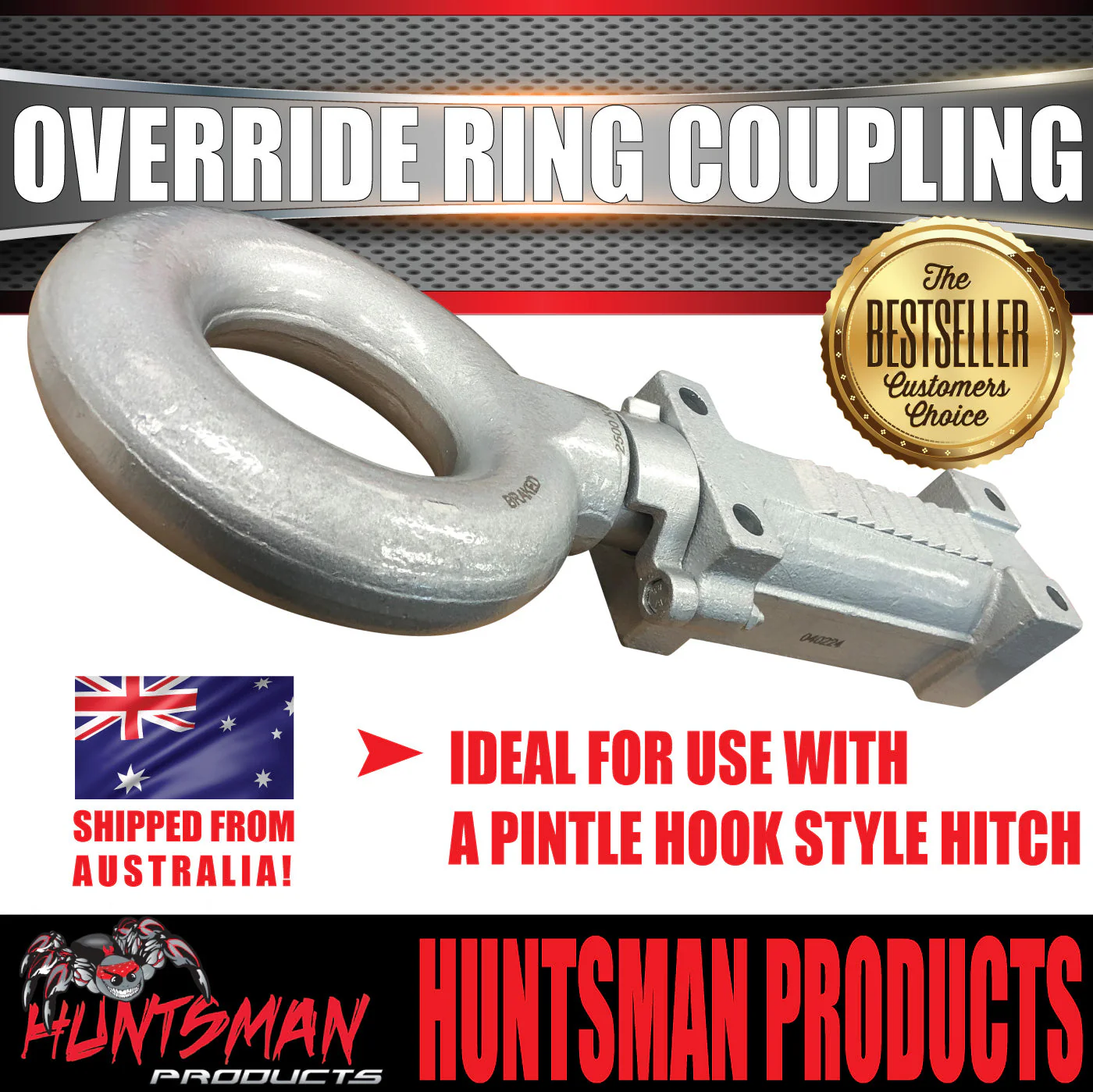

2000kg Trailer Caravan Hydraulic Override Ring Coupling Hitch Suit Pintle Hook. CTA Approved

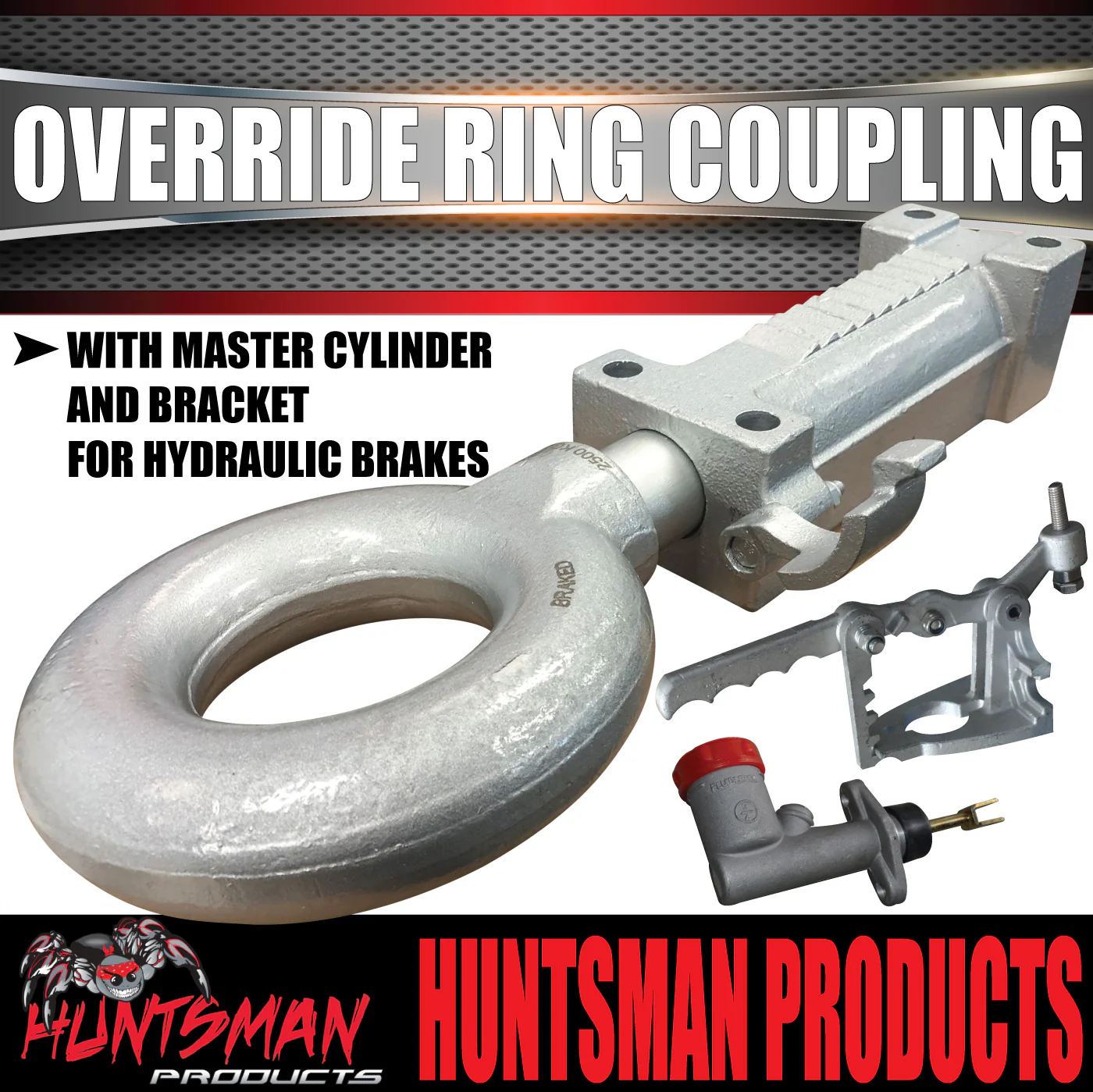

2000KG 0VERRIDE RING TYPE COUPLING WITH MASTER CYLINDER AND BRACKET

3" (75mm ID, 116mm OD)

CTA APPROVAL NUMBER:  CTA-061288

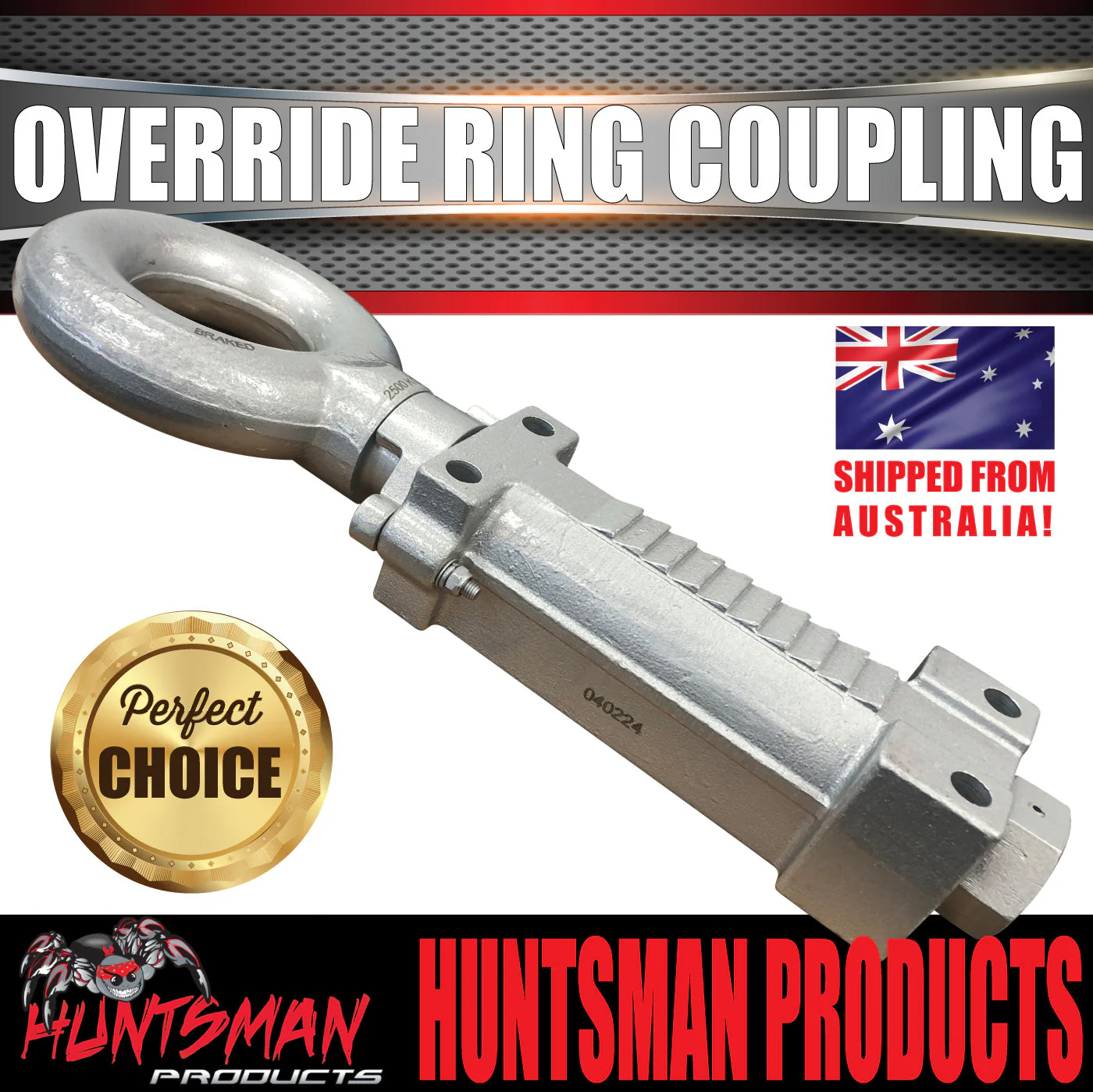

2000KG OVERRIDE RING TYPE COUPLING

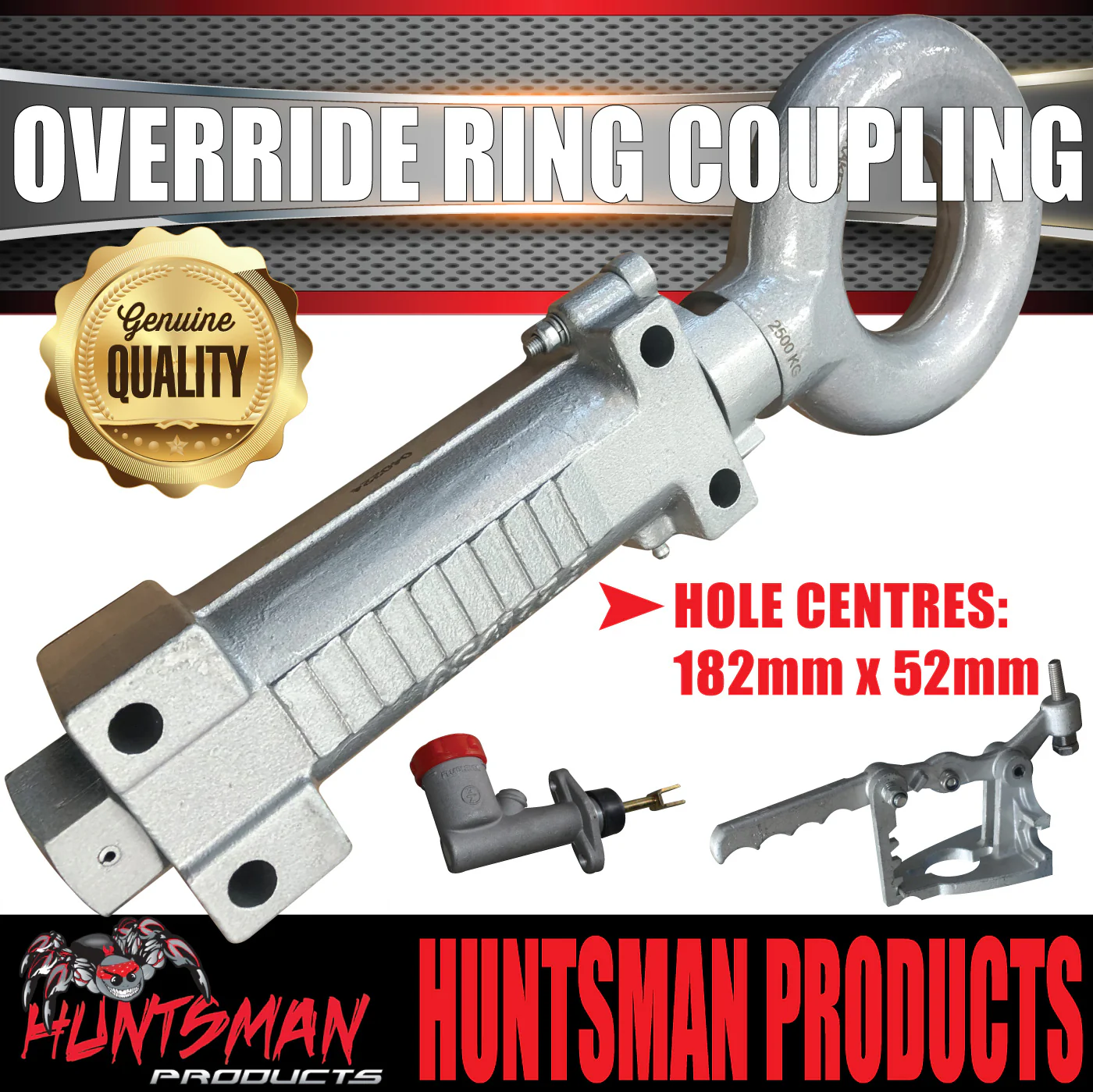

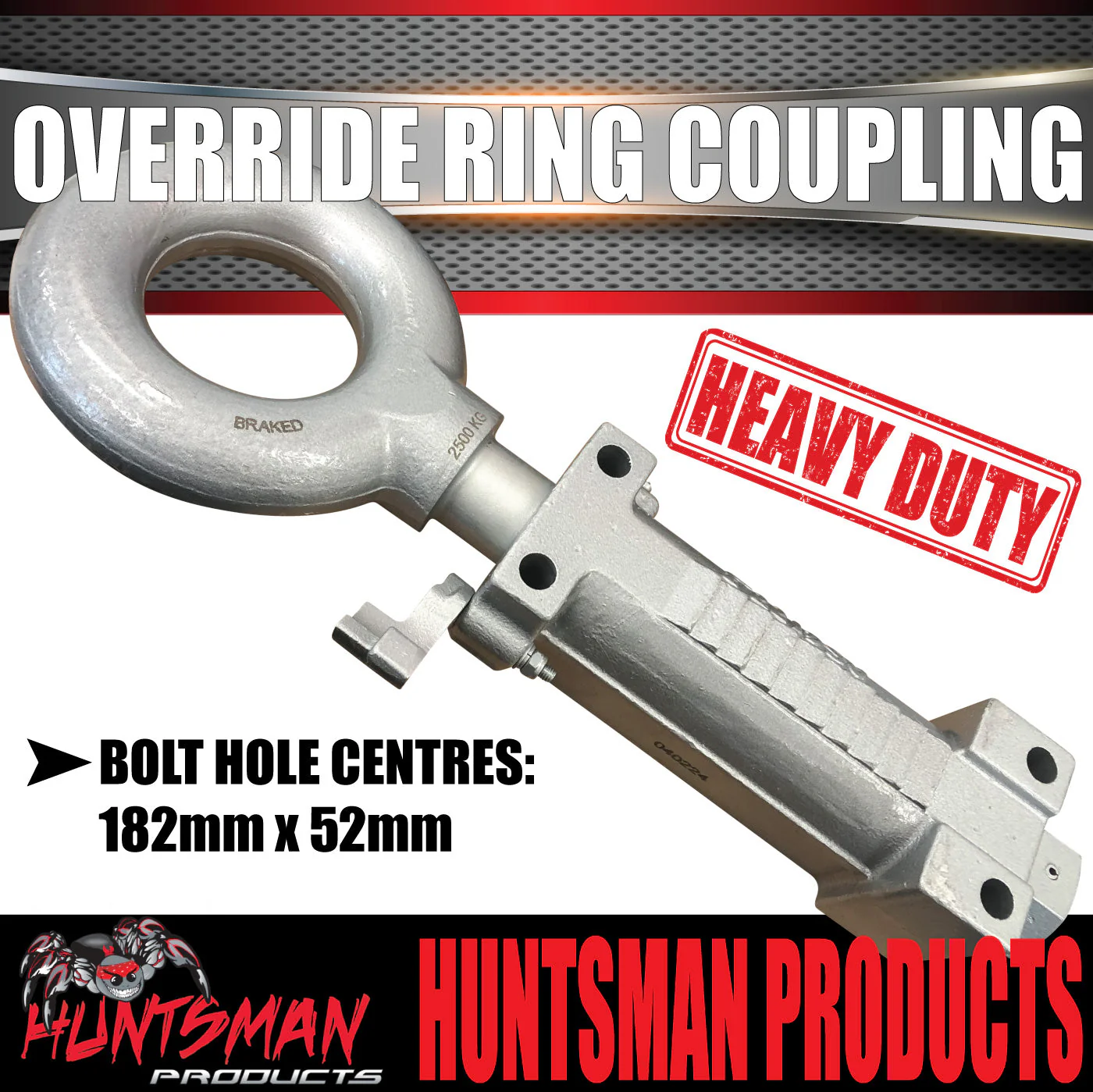

HOLE CENTRES: 182mm x 52mm

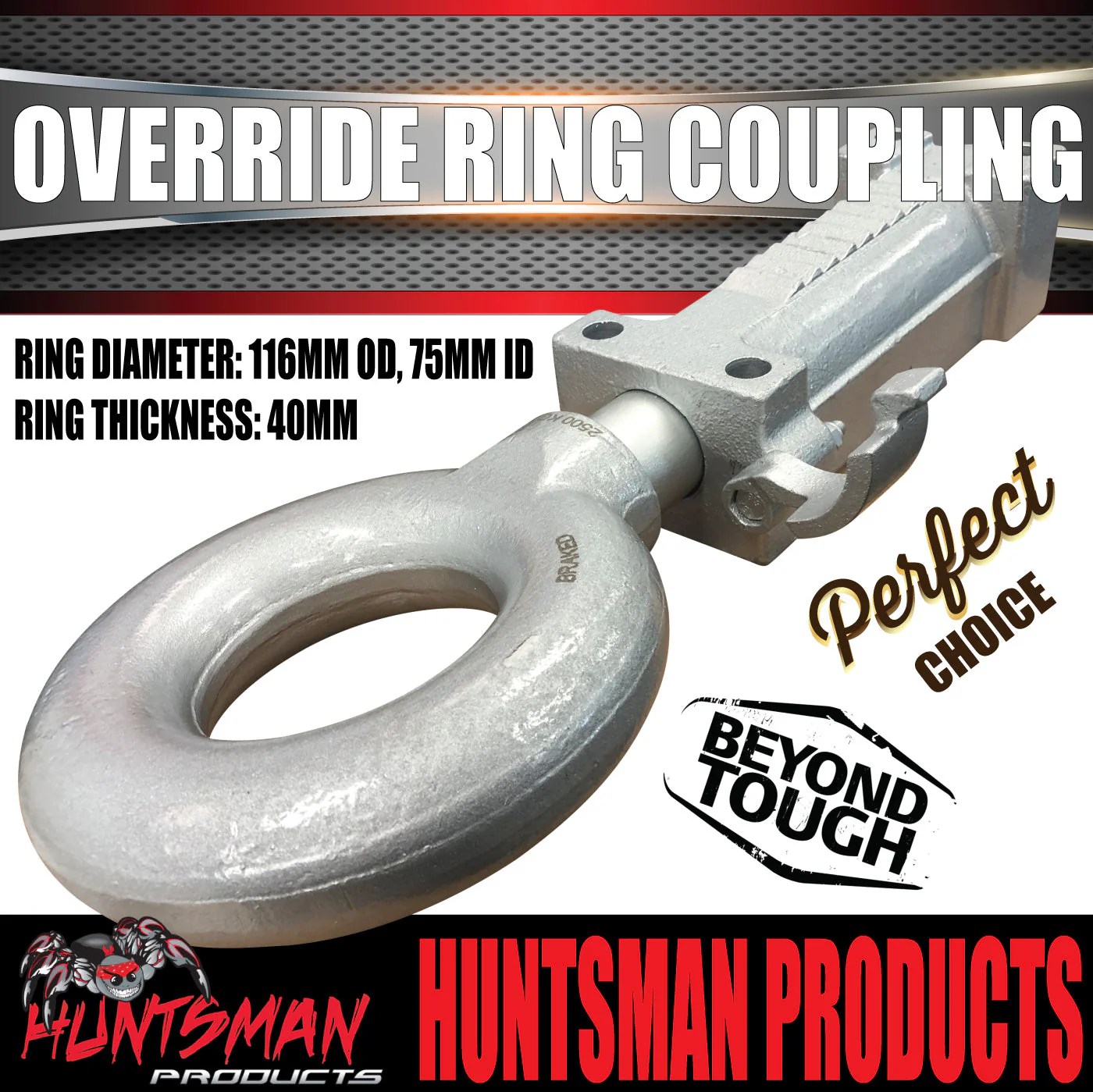

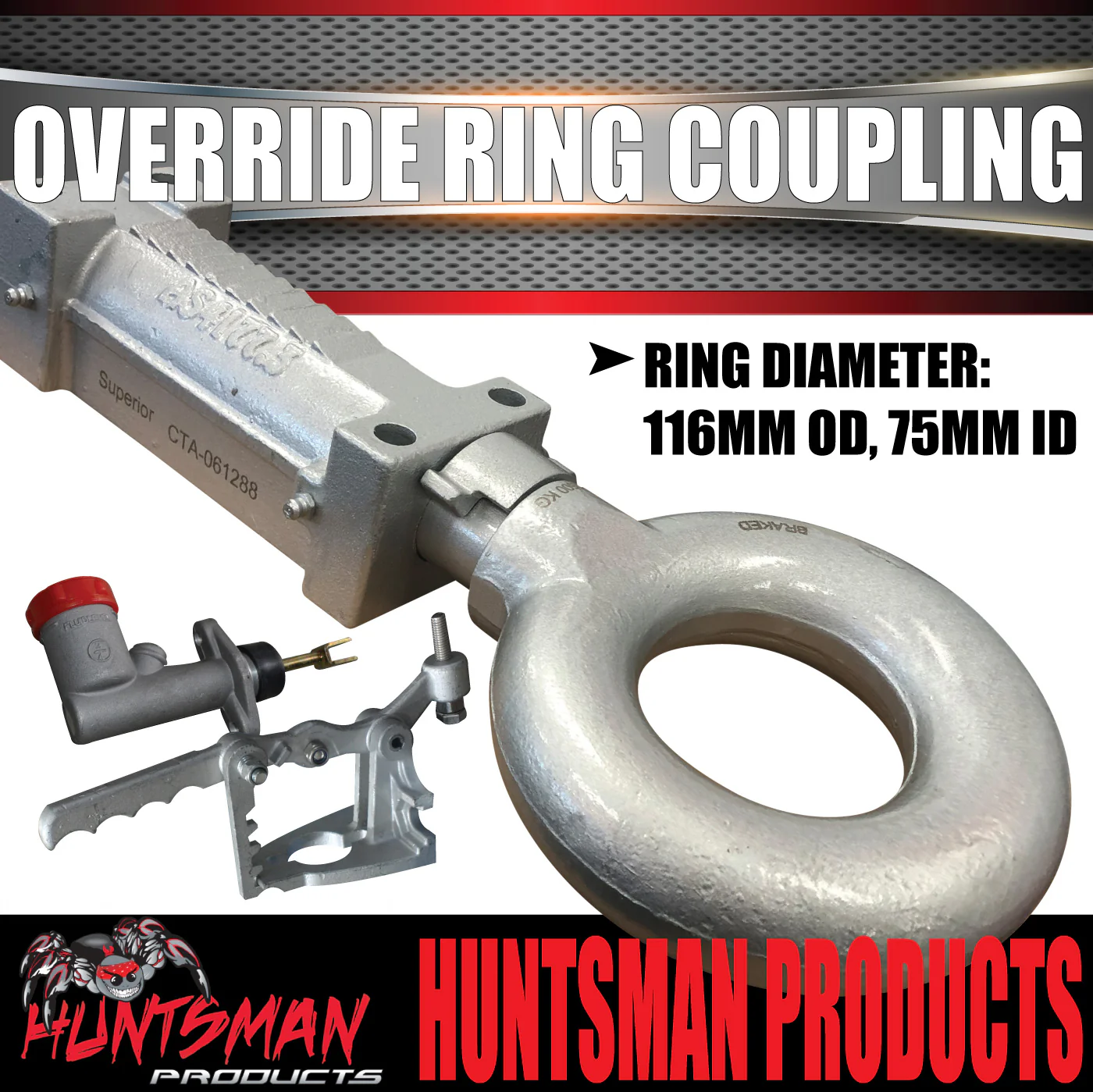

RING DIAMETER: 116MM OD, 75MM ID

RING THICKNESS: 40MM

BOLT HOLES: SUIT M12 BOLTS

MARINE DACROMET FINISH

TESTED TO 2500KG

K10-45 SHAFT

REVERSE LOCKING CLIP

SUITED FOR HYDRAULIC AND MECHANICAL BRAKES



FULL KIT INCLUDES

2000KG OVERRIDE RING COUPLING

3/4" MASTER CYLINDER WITH BOLTS TO MOUNT TO BRACKET

DACROMET MASTER CYLINDER BRACKETS
