Alko Trailer Caravab 6000kg Ring Coupling & Handbrake Kit Suit Pintle Hook 3" 614309

ALKO 6.0 TONNE FIXED RING TYPE COUPLING & HANDBRAKE KIT

3" (75mm ID, 116mm OD)

*  This style of coupling is similar in function to ball type couplings (fixed and over ride ) but instead of the connection to the tow vehicle being a standard 50 mm ball, the connection is a 75 mm inside diameter ring and this attaches to a “pintle hook” fitted to the tow vehicle.

* These types of couplings are primarily used in applications where the tow vehicle is a heavy commercial truck.

* As the Australian Standard AS 4177 states the 50mm towball to have a maximum capacity of 3500 kg ATM (total loaded mass), ring couplings are used when higher loads are involved.

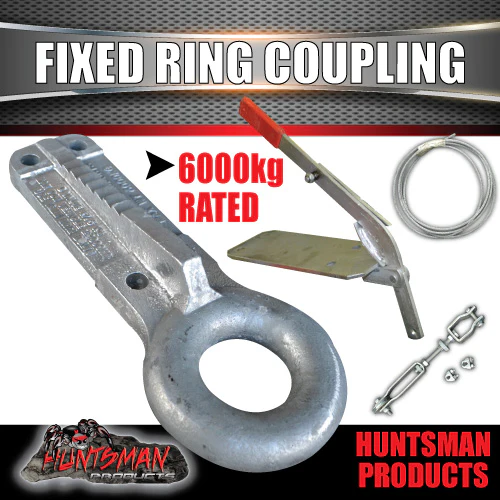

IN THIS KIT

1X 6000KG RING COUPLING

1X BASE PLATE WITH HANDBRAKE LEVER

8X METRES HANDBRAKE CABLE (LET US KNOW IF LONGER IS REQUIRED)

1X CABLE ADJUSTER

2X CABLE CLAMPS

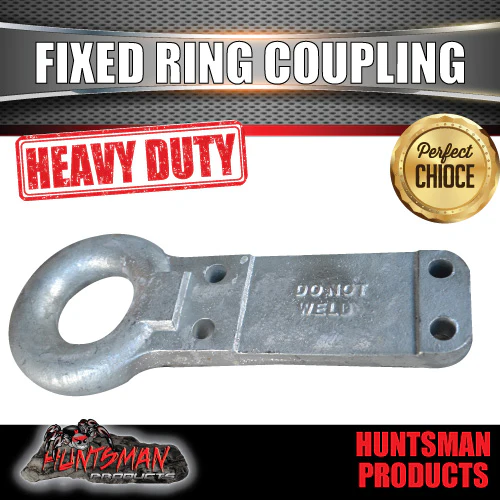

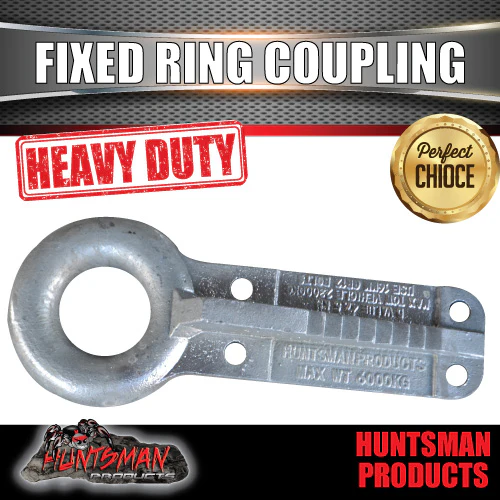

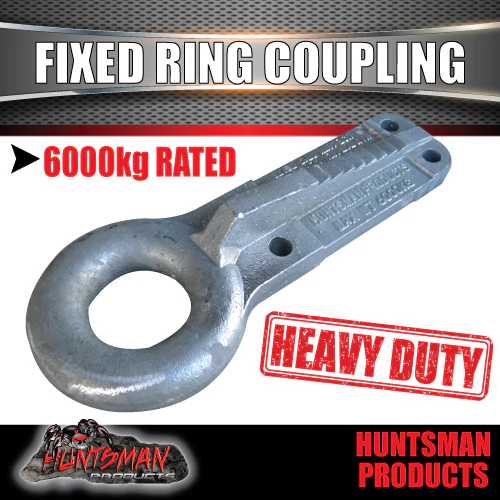

614309 -  AL-KO Fixed Ring Coupling, 6000kg 75mm,  4 hole Plated finish Suit Pintle.

Rating: 6000kg

Ring Size: 75mm (3")

Mounting Hole: 182mm (L) x 52mm (W)

Mounting Hole Diameter: 16.8mm

Surface Finish: Zinc Plated

Ring centre to first mounting hole (Nominal): 116mm
