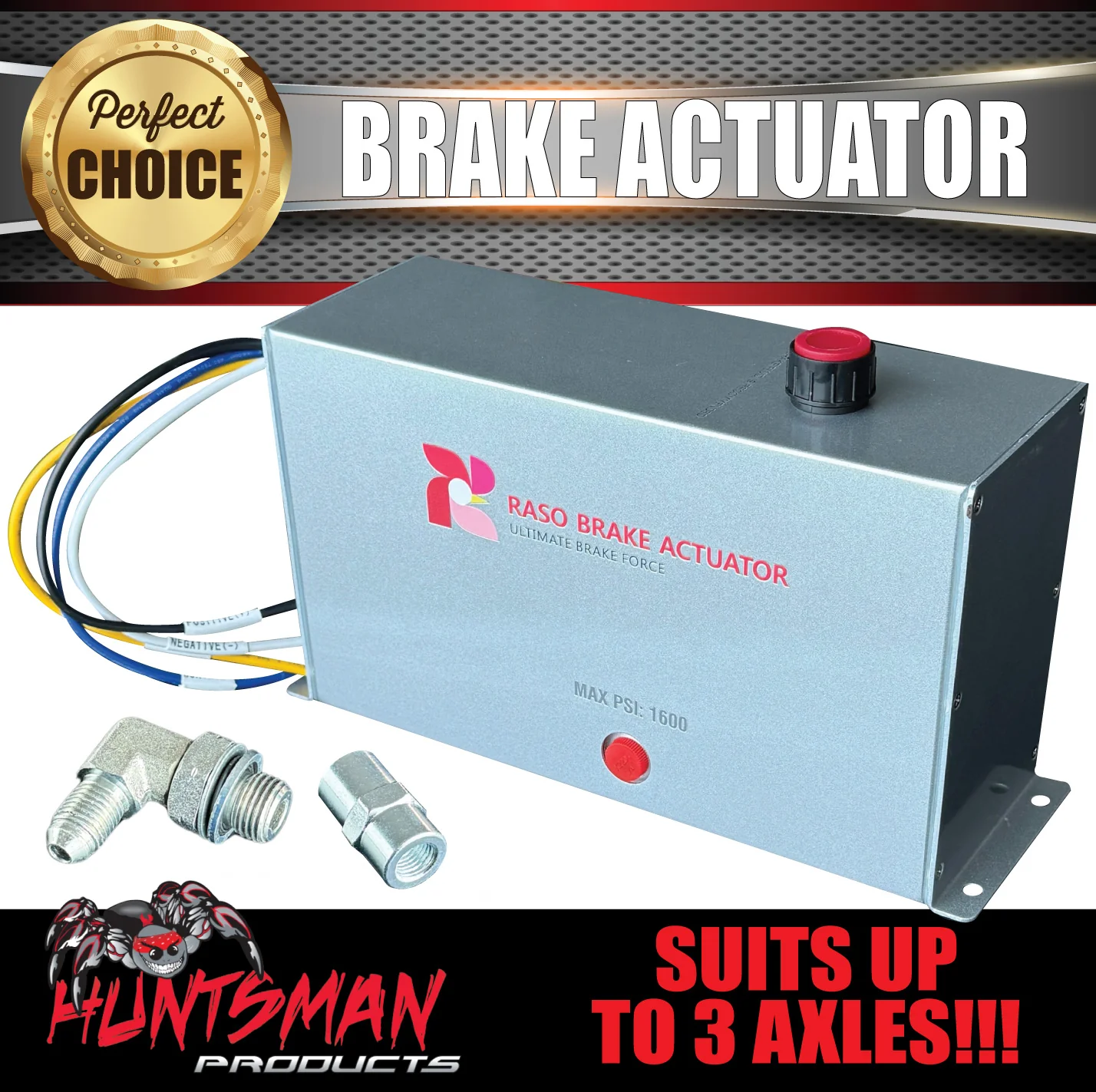

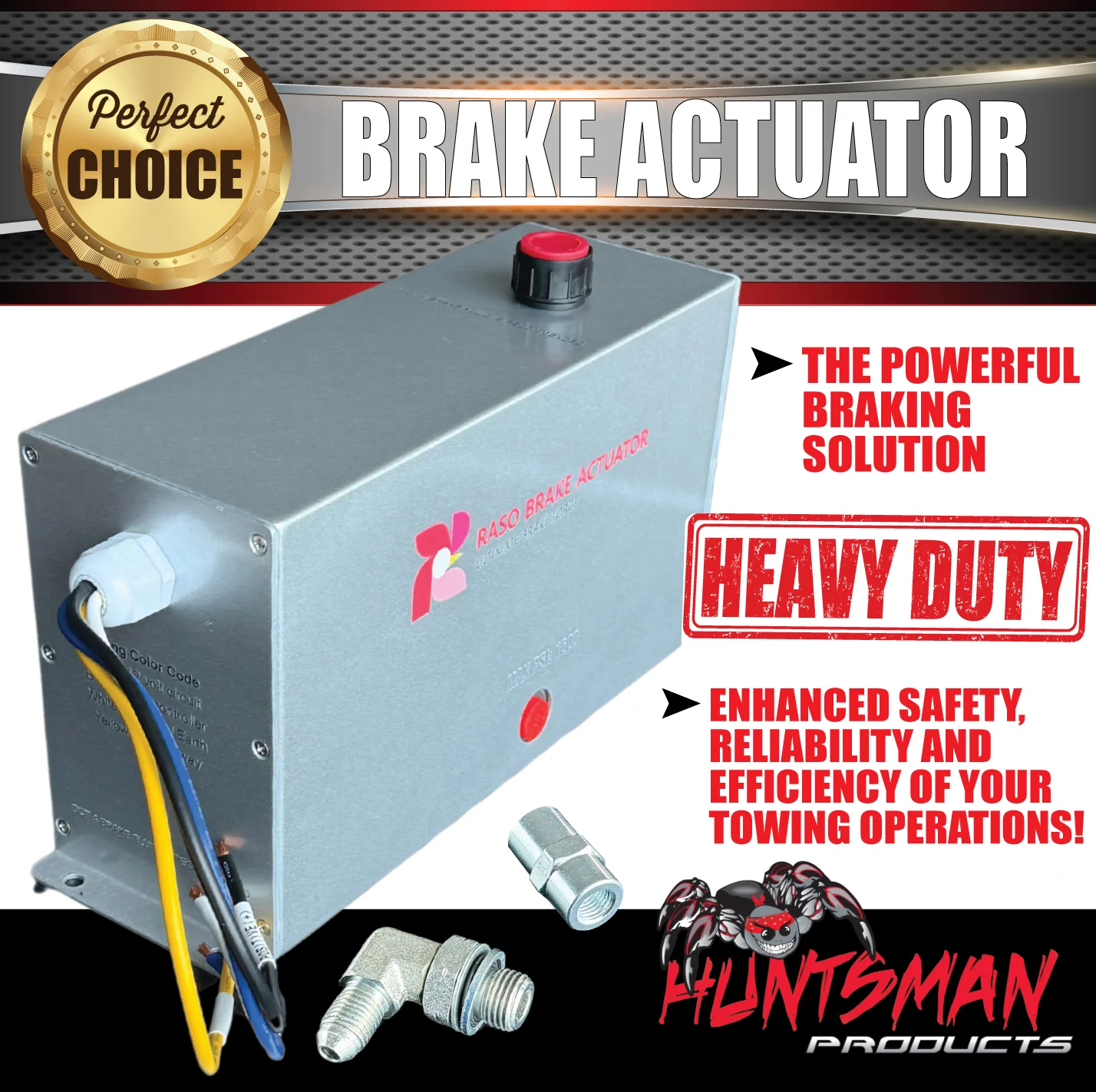

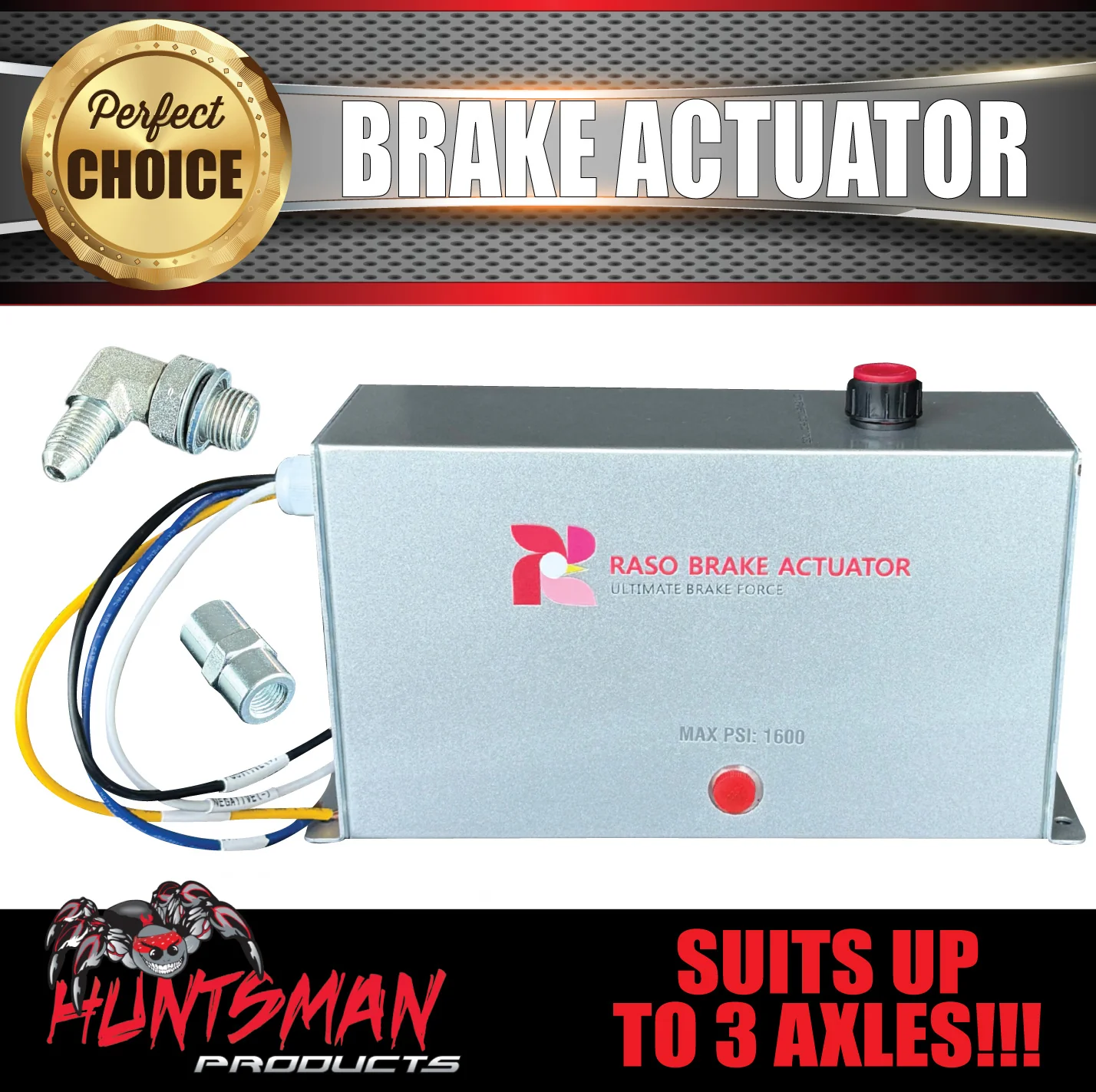

Raso Caravan Boat Trailer Electric Over Hydraulic Actuator. 1600 PSI. Up to 3 Axles. 3yr Warranty

Raso Electric Over Hydraulic Actuator.

1600 PSI

3 Year Replacement Warranty





Made from the highest quality parts

Made to handle all Australian conditions

Will brake up to 3 axles

360 Degrees brake line fitting to connect from all angles

Shorter stopping distances

DC high powered motor

Sealed fluid tank providing extra fluid reserve

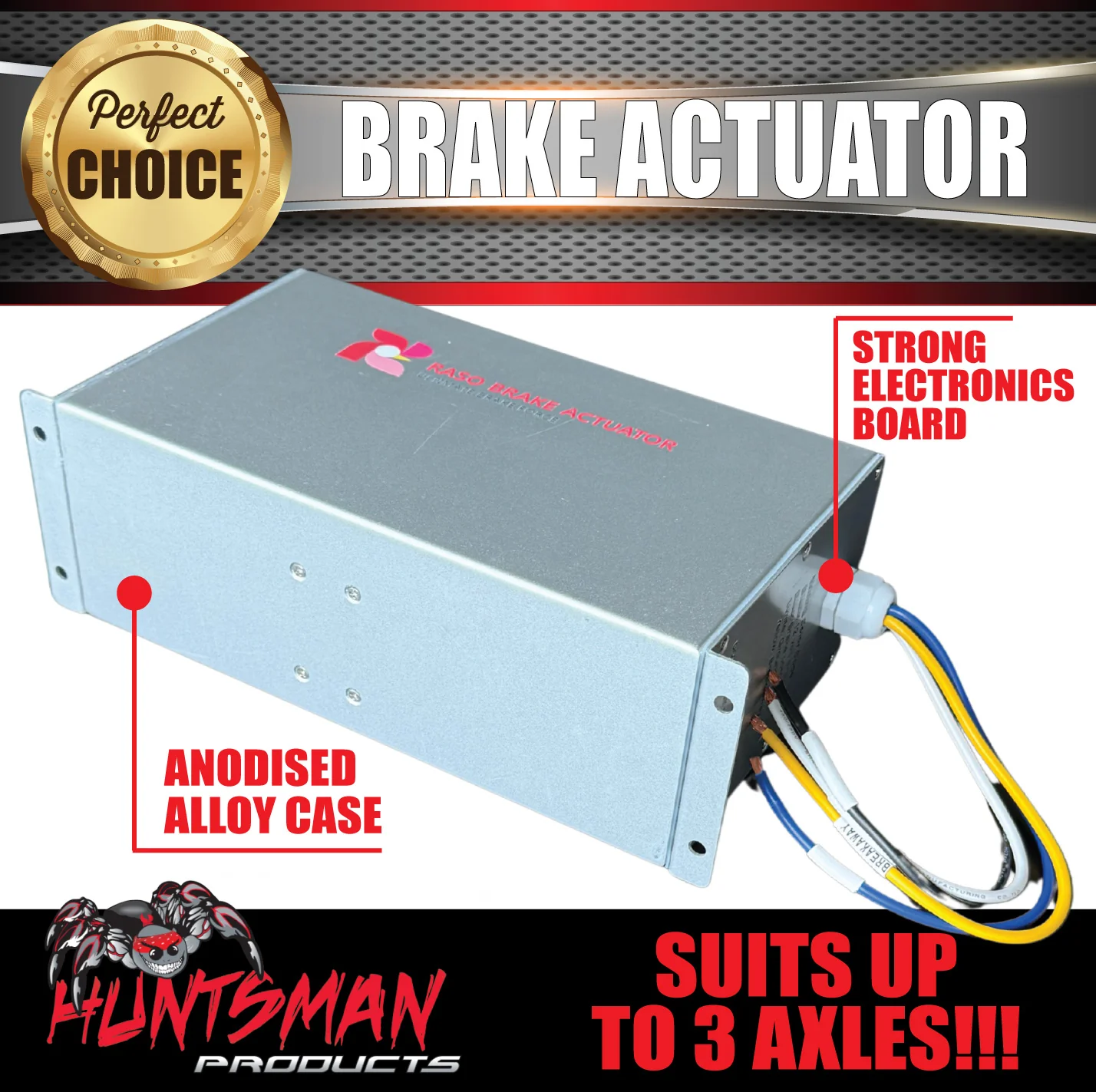

Anodised alloy case

Strong electronics board



Unit dimensions:
Length: 280mm
Height: 165mm
Width: 100mm
Mounting centres: Approx 297mm Length and 65mm Width

Wiring Colour Code

Black: 12 Volt Circuit

Blue: Brake Controller

White: Ground / Earth

Yellow: Break Away
