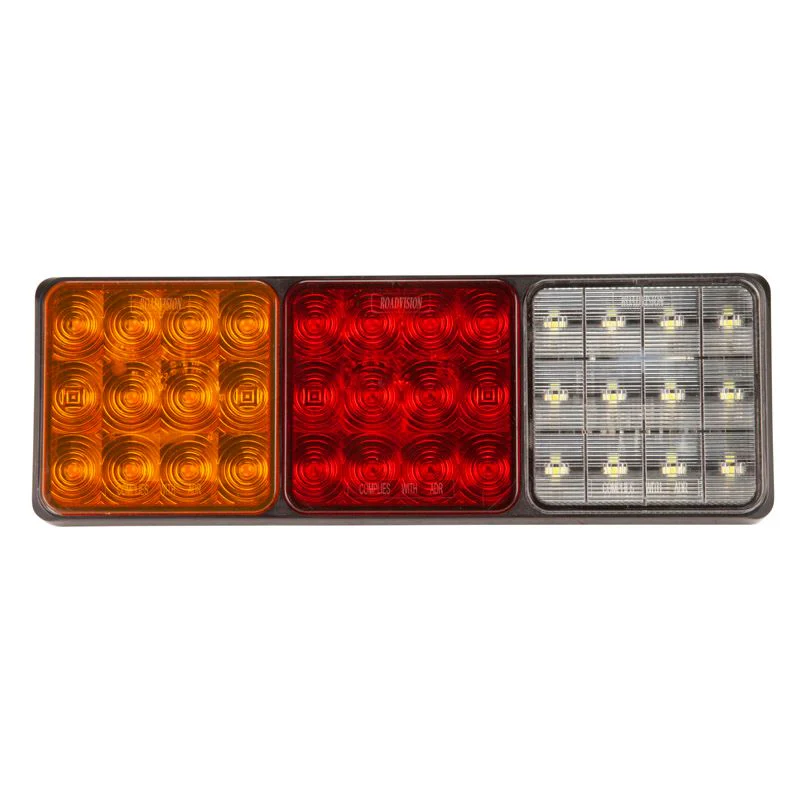

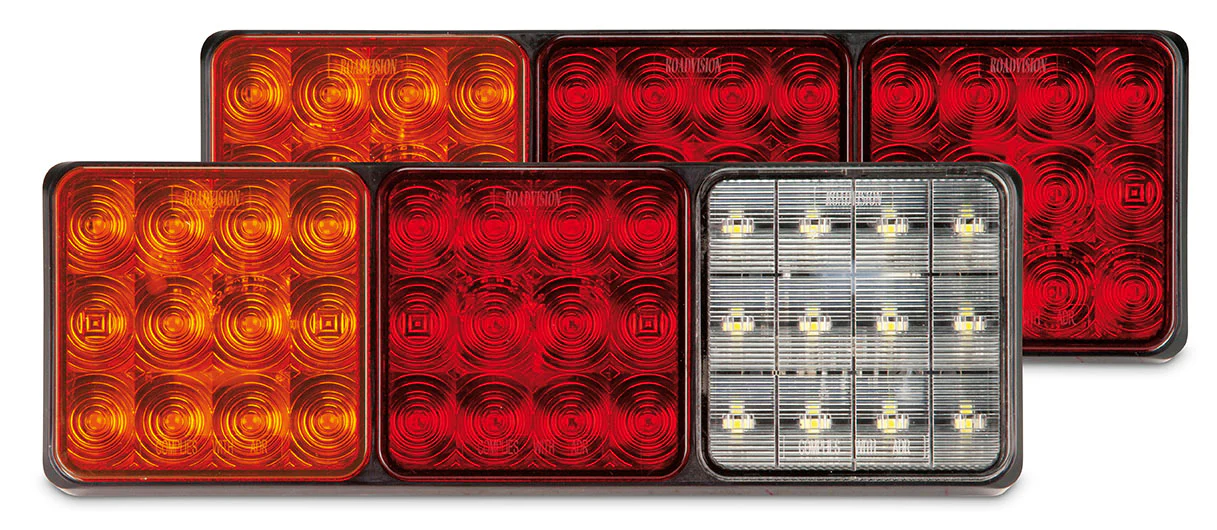

Roadvision BR82ARW LED Stop/Tail/Ind/Rev Light Lamp Trailer Truck 10-30V

ROADVISION TRIPLE COMBINATION LAMPS

BR82 SERIES



ROADVISION’s BR82 Series triple combination trailer lamps! The complete all-in-one fit and forget solution. Roadvision’s super bright LED combination lamps deliver the durability of maintenance free LED technology and greater visibility providing increased safety. Roadvision’s BR82 Series are the complete all in one solution with Stop, Tail, Indicator & Reverse all in the one lamp. The BR82 Series combination lamps produce more light output than incandescent lamps, whilst drawing a fraction of the current. Couple this with unbreakable polycarbonate lenses and an extremely tough housing manufactured from high impact ABS, these lamps are weather resistant and totally maintenance free, with a life span rated at 100,000 hours. With ROADVISION it’s FIT and FORGET.



PRICE IS FOR 1 X BR82ARW LIGHT



FEATURES:

Retro reflector incorporated into lens

Multi-volt 10-30V DC input & low current draw

100,000 hour rated LED lifespan with solid state technology

Water & dust proof

Sealed polycarbonate lens & high impact ABS housing

Maintenance free

Simple surface mount design

ADR/ECE approved for all functions





RANGE SPECIFICATIONS

Description: Triple Combination Lamp

Functions: Stop/Tail, Indicator & Reverse

Voltage Input: 10-30V DC

Number of LED's: Indicator - 12 LED's, Stop/Tail - 12 LED's, Reverse - 12 LED's

Current Draw Amps, Ind - 0.1A @ 13.8V, S/T - 0.1/0.05A @ 13.8V, Rev - 0.1A @13.8V

Dimensions 282 x 95 x 30mm

Lens Construction: Polycarbonate

Housing Construction: High Impact ABS

Mounting Hole Centre: 120mm Stud Centres

Cable Length: 300mm Tinned Copper LEDLink Connector

Wiring Colour Codes: Earth - White, Stop - Red, Tail - Brown, Indicator - Green or Yellow, Reverse – Black

ADR Approved

CTA Approved
