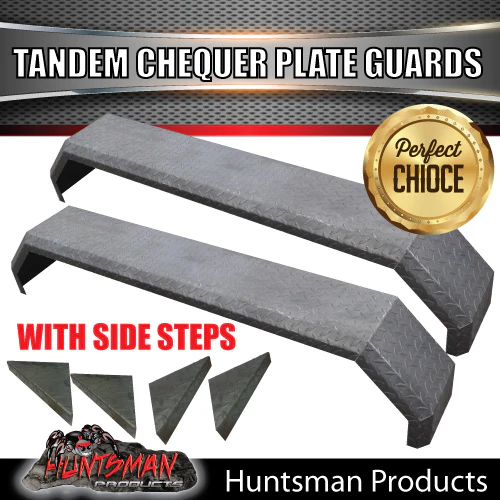

2x 1600mm x 250mm Tandem Trailer Mudguards Chequer Steel & Steps suits Slipper Springs

2x tandem axle chequer plate mudguards
which are suited to slipper spring suspension 250MM WIDE
With 4 Chequer steps

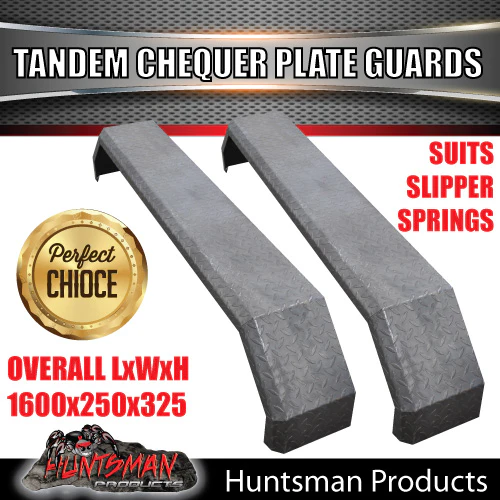

LENGTH OVERALL APPROX  = 1600MM

WIDTH OVERALL APPROX  = 250MM

HEIGHT OVERALL APPROX = 320MM

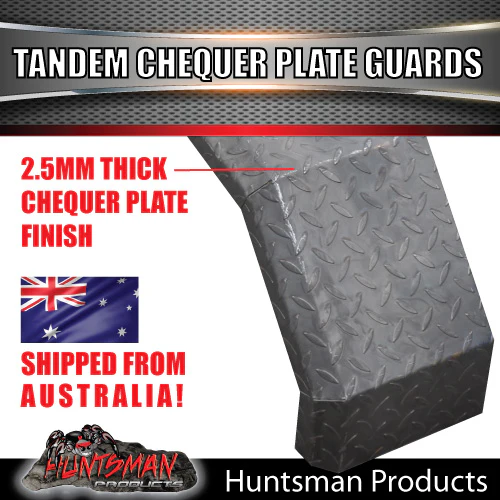

2.5mm chequer plate finish

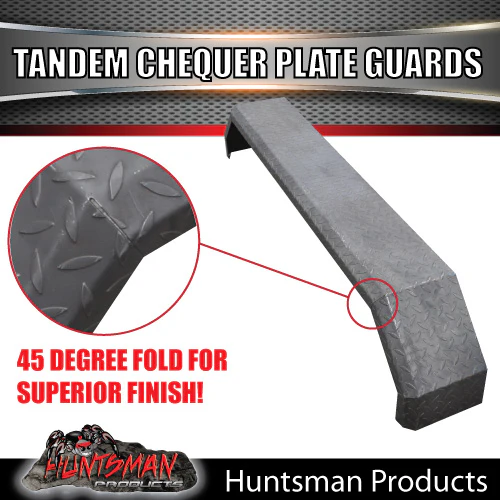

45 degrees folds roll over wheels for a fantastic look

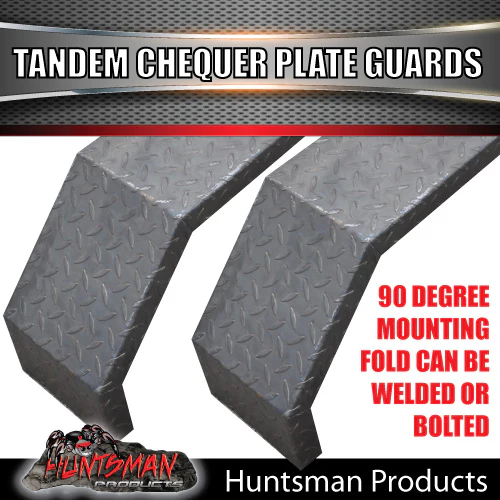

90 degrees return fold to meet chassis
guards come folded only and not welded to allow flex to meet up with steps or tie rails (a charge of $40 applies to have them welded)
made from hot rolled chequer plate steel

THESE ARE SUITED TO STANDARD 13", 14" AND 15" WHEELS AND TYRES.

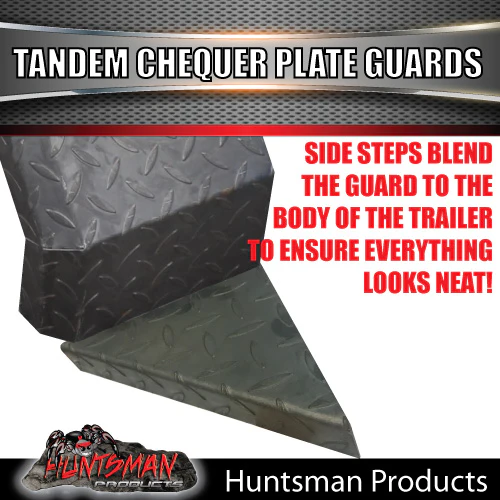

4x chequer finish corner steps
2.5mm chequer finish
approx. 200mmx200mm x 280 return fold
return fold approx. 30mm
