x1 Trailer Caravan Lazy Hub HT Holden Pattern 5/108 PCD & LM Holden Size Bearing Kit

X1 HT HOLDEN PATTERN TRAILER HUB
WITH LM (HOLDEN) BEARING KIT

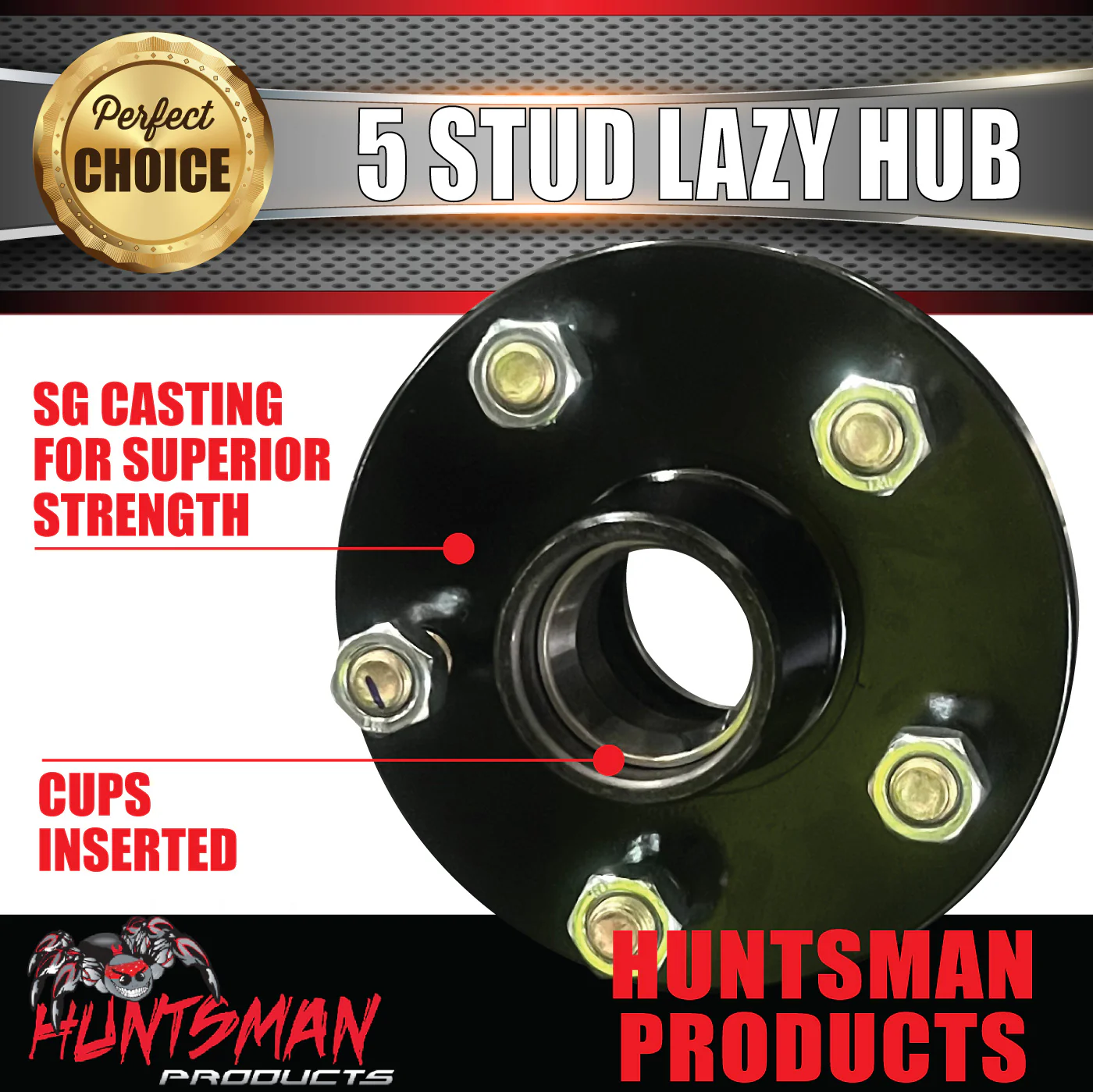

(SG casting. much stronger than grey iron casting)

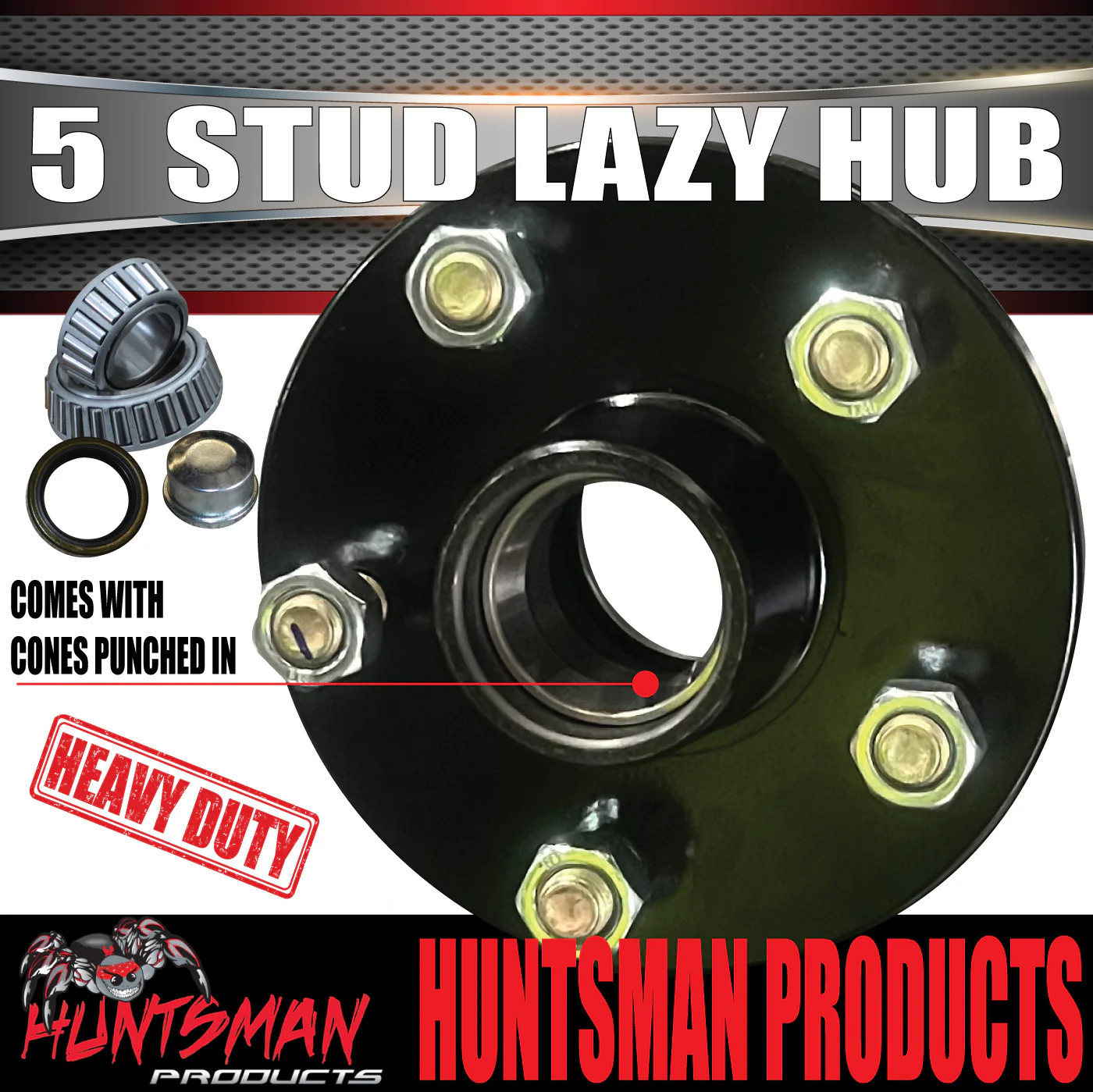

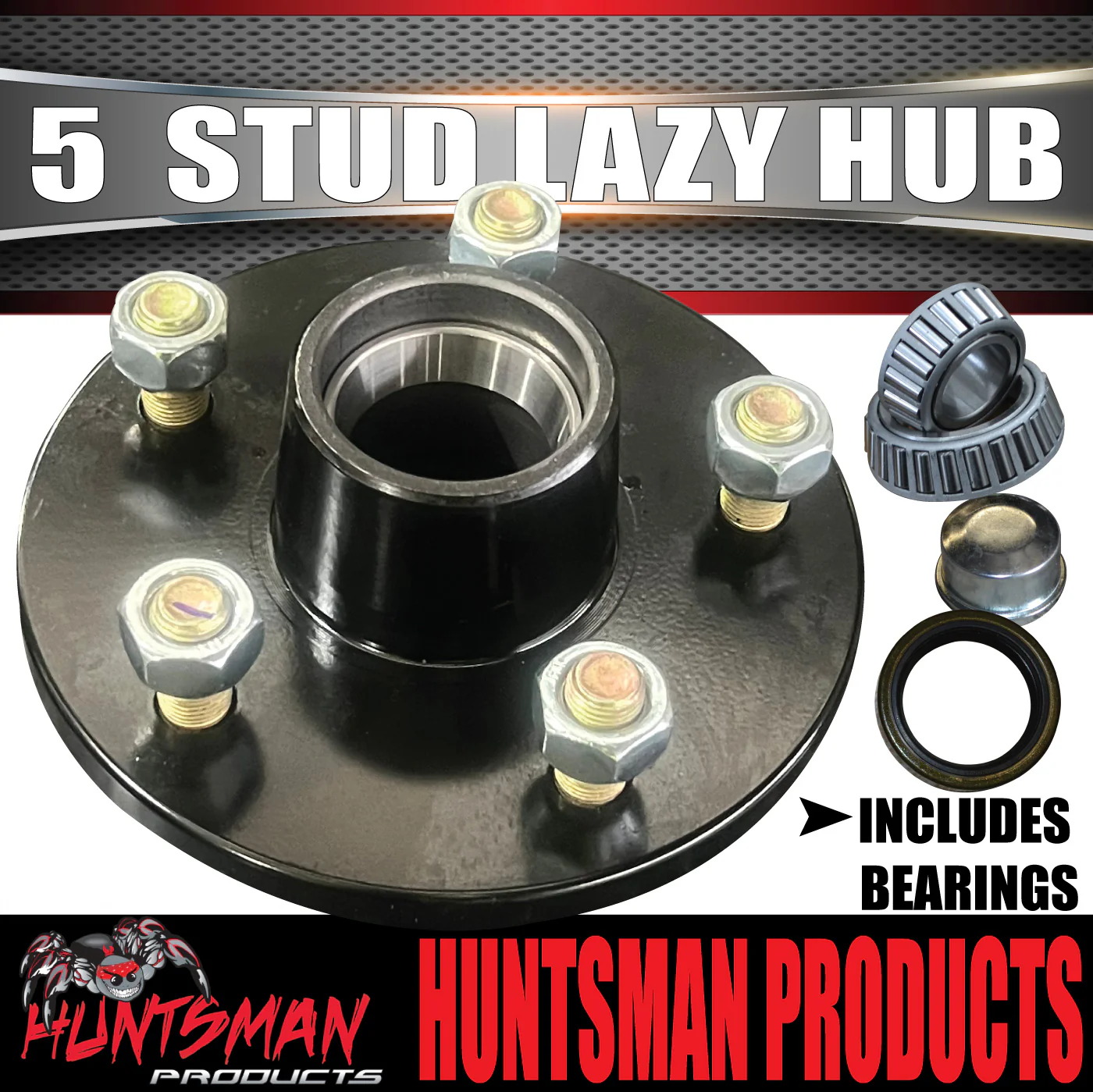

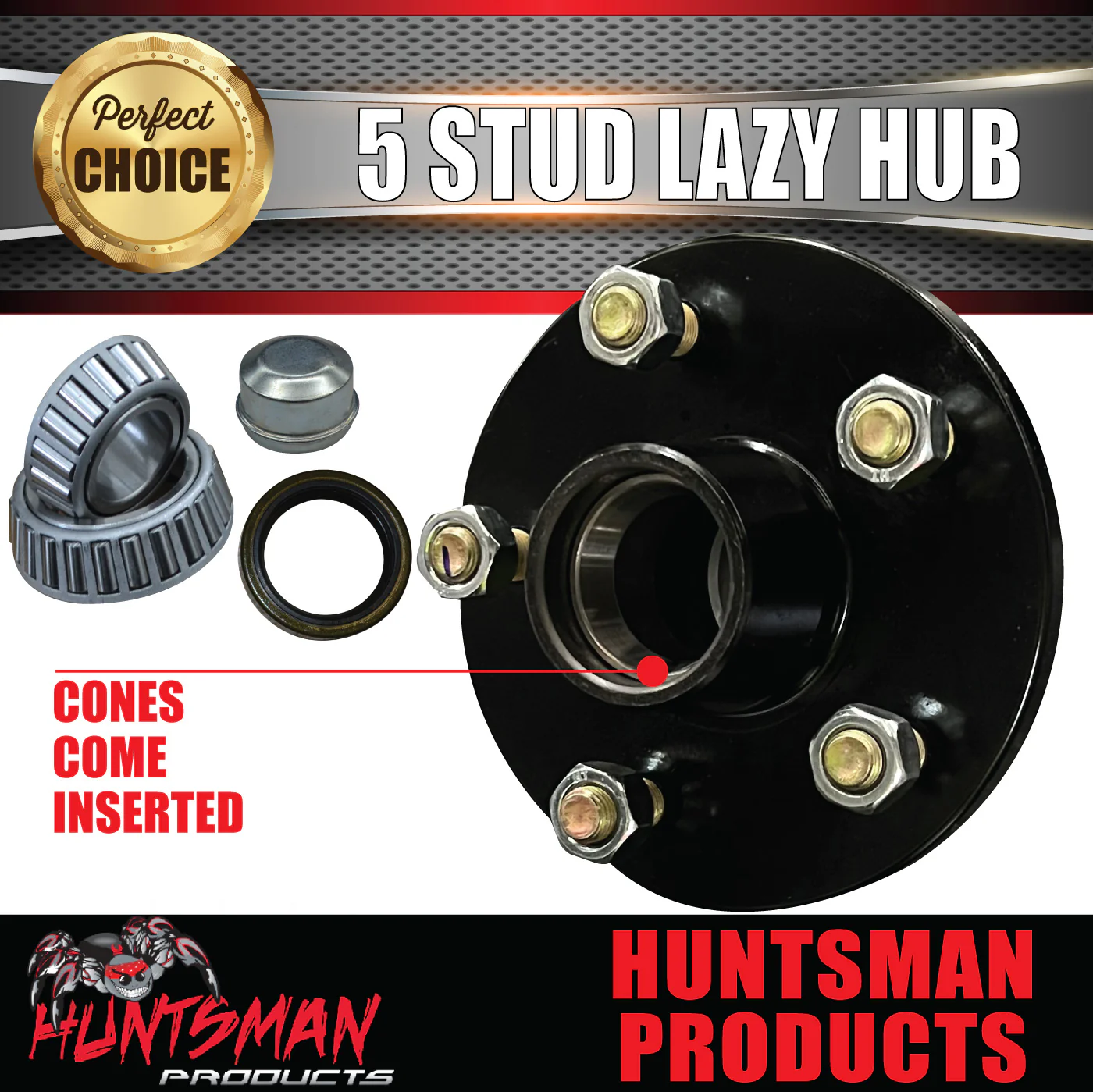

1x 5 STUD HT HOLDEN PATTERN STEEL HUB WITH STUDS AND NUTS
PCD: 5/108
7/16" STUDS AND NUTS
HUB DIAMETER: 152.4MM
MATERIAL: S.G CASTING
FINISH: BLACK PAINTED
63.95MM FROM CENTRE OF ONE STUD TO THE CENTRE OF THE NEXT STUD
SUITS AXLES: 39MM AND 40MM

1X LM BEARING SET
1X INNER BEARING ID:31.7MM (LM67048)
1X OUTER BEARING ID:19MM (LM11949)
1X OUTER BEARING CUP (already inserted)
1X INNER BEARING CUP (already inserted)
1X LM REAR DUST SEAL (28500)
1X 45MM DUST CAPS
HUB COMES WITH CUPS INSERTED



BEARING OPTIONS
UPGRADE TO JAPANESE BEARINGS $25.0 (click on link below)

CLICK HERE TO UPGRADE TO JAPANESE KOYO BEARINGS
