x4 585mm x 500 newton gas struts
X4 585mm x 500 newton gas struts
European seals

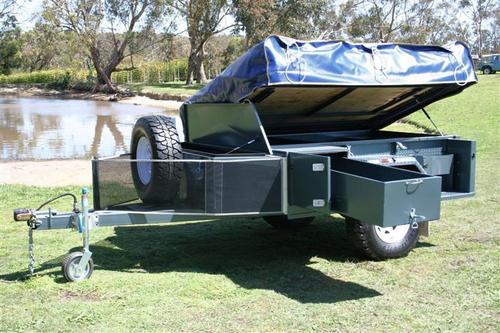

these struts are generally used under on tradesman trailer side and rear doors that are framed and approx 50kg

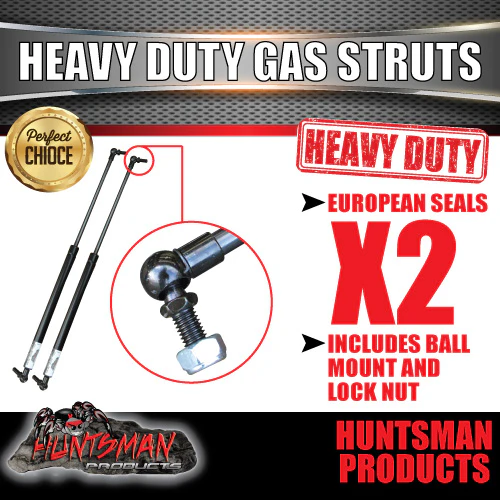

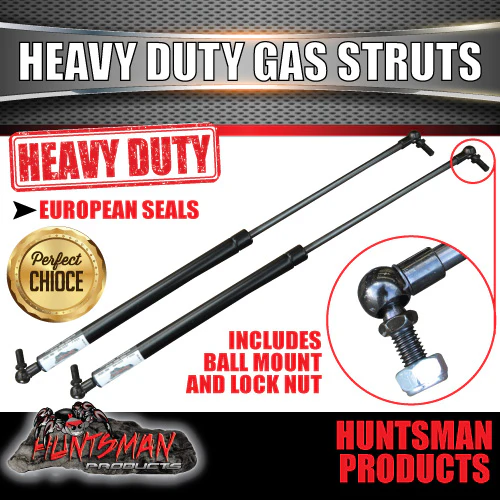

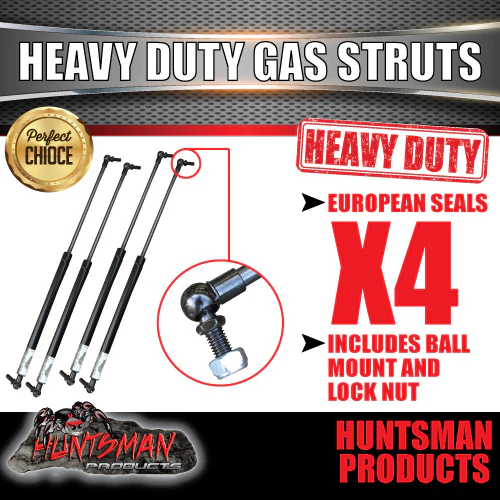

4x 500 newton x 585mm open shaft gas struts
shaft width 10mm

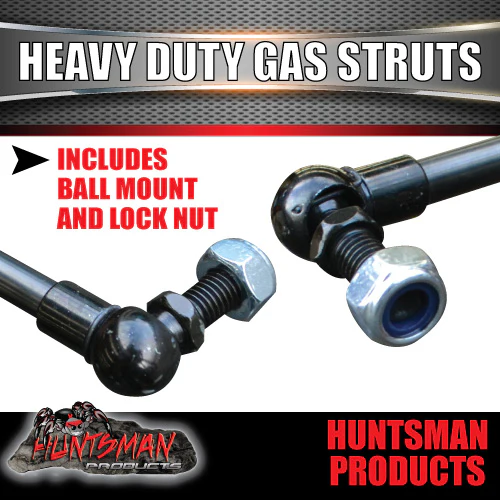

comes with mount ball bolts and nyloc nuts
STROKE LENGTH (A) MM = 260
EXTENDED LENGTH (B) MM = 585
PISTON ROD (D1) MM = 10
PISTON CYLINDER (D2) MM = 22
FORCE RANGE NEWTON = 500
STRUT BRACKETS AVAILABLE IN OUR STORE
What gas strut do I need?
To calculate the size and the force of the Gas Strut you require for your application use the following guidelines. The extended length of the Gas Strut should be approximately 60% of the door or hatch length - e.g. a 1000mm high door should have a Gas Strut length of approximately 600mm.
Description
X4 585mm x 500 newton gas struts
European seals
these struts are generally used under on tradesman trailer side and rear doors that are framed and approx 50kg
4x 500 newton x 585mm open shaft gas struts
shaft width 10mm
comes with mount ball bolts and nyloc nuts
STROKE LENGTH (A) MM = 260
EXTENDED LENGTH (B) MM = 585
PISTON ROD (D1) MM = 10
PISTON CYLINDER (D2) MM = 22
FORCE RANGE NEWTON = 500
STRUT BRACKETS AVAILABLE IN OUR STORE
What gas strut do I need?
To calculate the size and the force of the Gas Strut you require for your application use the following guidelines. The extended length of the Gas Strut should be approximately 60% of the door or hatch length - e.g. a 1000mm high door should have a Gas Strut length of approximately 600mm.
